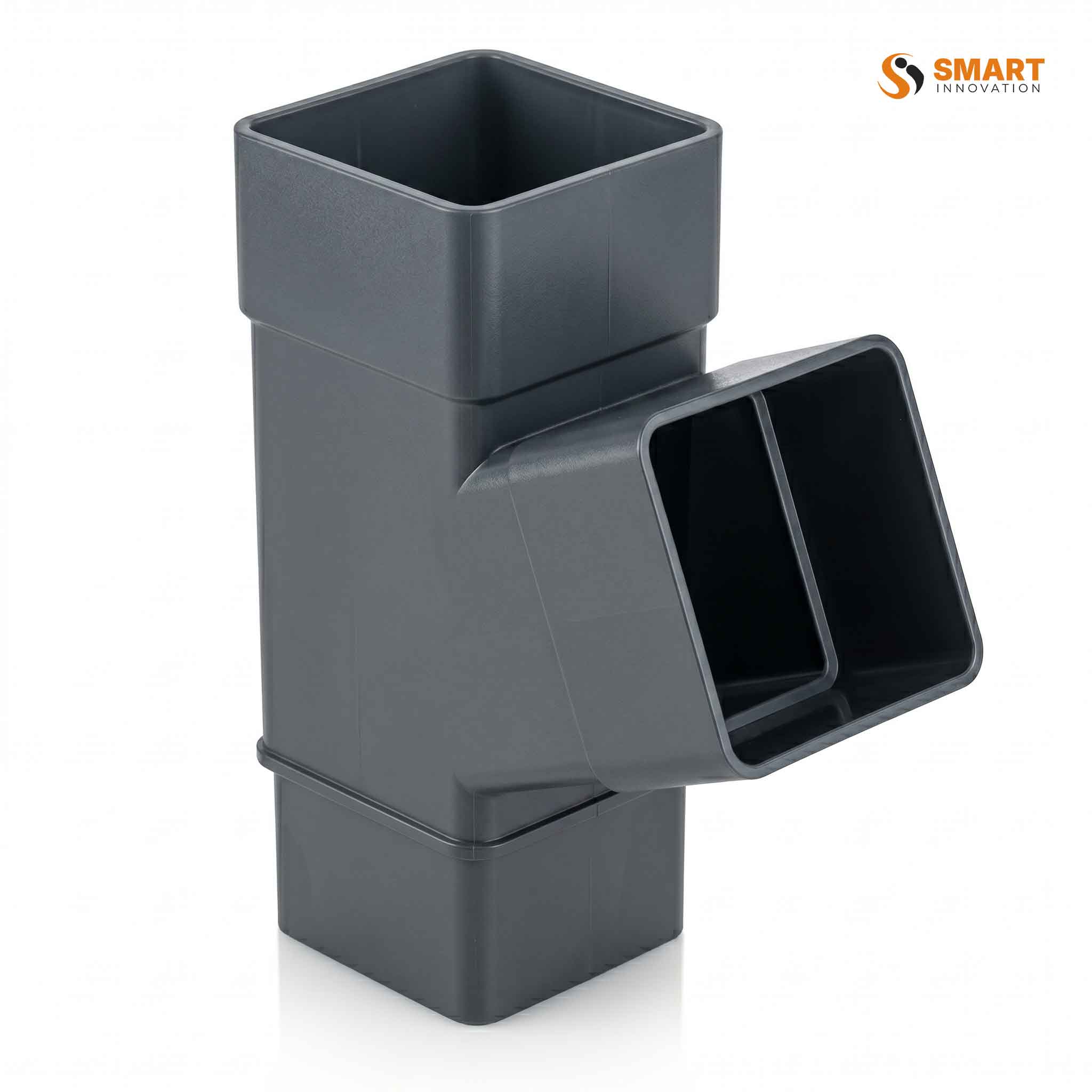

The square downpipe 112° branch is designed to introduce a secondary rainwater connection into a main vertical downpipe run. It allows water from an upper or side connection to merge smoothly into the primary drainage line.
Manufactured from durable UPCV, the branch is suitable for external rainwater installations and features push-fit connections for straightforward assembly. The 112° angle provides controlled water entry while helping maintain flow direction within the system.
This fitting is commonly used where multiple rainwater sources need to be combined into a single square downpipe, such as roof junctions, extensions, or offset gutter layouts.
Specification Table
| Specification | Details |
|---|---|
| Product Type | Downpipe Branch |
| Branch Angle | 112° |
| Pipe Shape | Square |
| System Size | 65mm |
| Material | UPCV |
| Application | Rainwater drainage |
| Installation | External |
| Connection Type | Push-fit |
| Function | Secondary pipe connection |
| Colour Options | Anthracite Grey, Black, White |
